GL Series Greywater Filters




GL Series

Greywater Filters

A large filtering surface with surge and pressurization capacity make the GL Series Greywater Filters a good choice for a large landscape drip zone with numerous greywater sources. The GL Series also provides numerous pumping pressure models for landscapes with moderate to steep terrain.



install grey water system filter
install grey water system filter

* To view system prices, scroll to the bottom of the page and use the drop-down menu to select the system.

install grey water system filter

install grey water system filter


GL Series Features:

Weight: 140 lbs

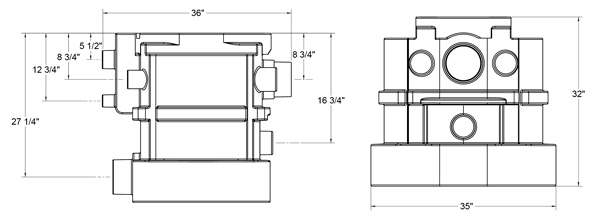

Dimensions: L: 35”, W: 36”, H: 32”
3” intake port
Two Stainless Steel 150 Mesh Filter Baskets
1/2 HP, 3/4 HP or 1 HP multi-stage pumping
Large pumping chamber
Bolt down integrated lid system
Convenient filter access
Removable filter carriage
Surge tank expansion ports for Add-on Surge Tanks
Includes Secondary Filter & System Indicators



Downloads:
install grey water system filter
 GL Series Specification Sheet >
install grey water system filter
 Greywater Product Catalog >
install grey water system filter
 CAD Details >
install grey water system filter
 Warrenty Information >

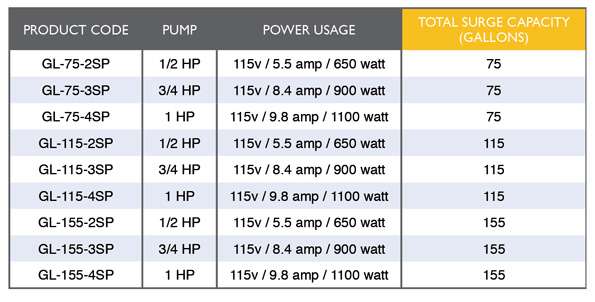

System Selection:

Use the drop down menu below to select a GL Series Greywater Filter.
