GXL Series Greywater Filters




GXL Series

Greywater Filters

The GXL series provides extra large surge and filtering capacity for a landscape requiring a large amount of water and many greywater sources. Several pumping pressure models are listed for landscapes with moderate to steep terrain.



install grey water system filter
install grey water system filter

* To view system prices, scroll to the bottom of the page and use the drop-down menu to select the system.

install grey water system filter

install grey water system filter

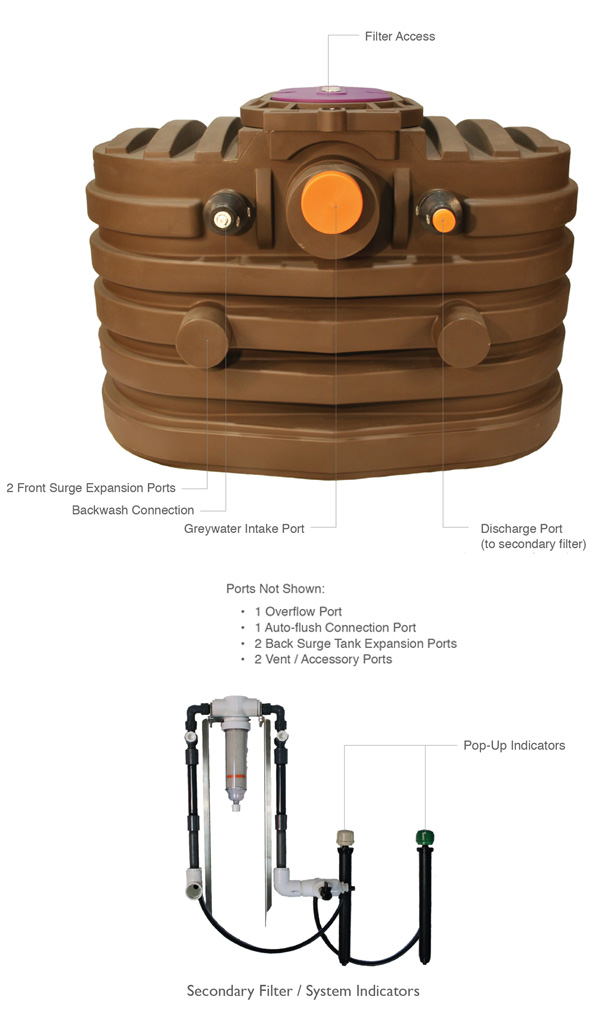

GXL Series Features:

Weight: 326 lbs

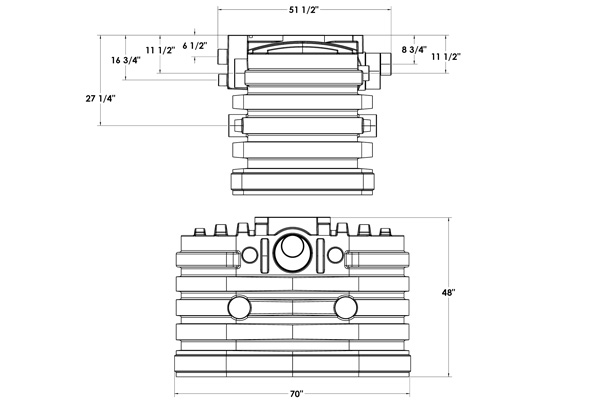

Dimensions: L: 70”, W: 51.5”, H: 48”
3” Large intake port
Two Stainless Steel 150 Mesh Filter Baskets

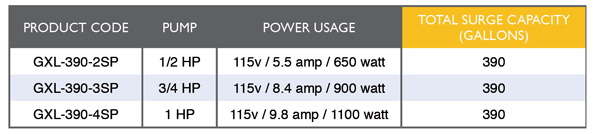

1/2 HP, 3/4 HP or 1 HP multi-stage pumping
Large pumping chamber
Bolt down integrated lid system
Convenient filter access
Removable filter carriage
Surge tank expansion ports for Add-on Surge Tanks
Includes Secondary Filter & System Indicators



Downloads:
install grey water system filter
 GXL Series Specification Sheet >
install grey water system filter
 Greywater Product Catalog >
install grey water system filter
 CAD Details >
install grey water system filter
 Warrenty Information >







System Selection:

Use the drop down menu below to select a GXL Series Greywater Filter.
